Filter Element

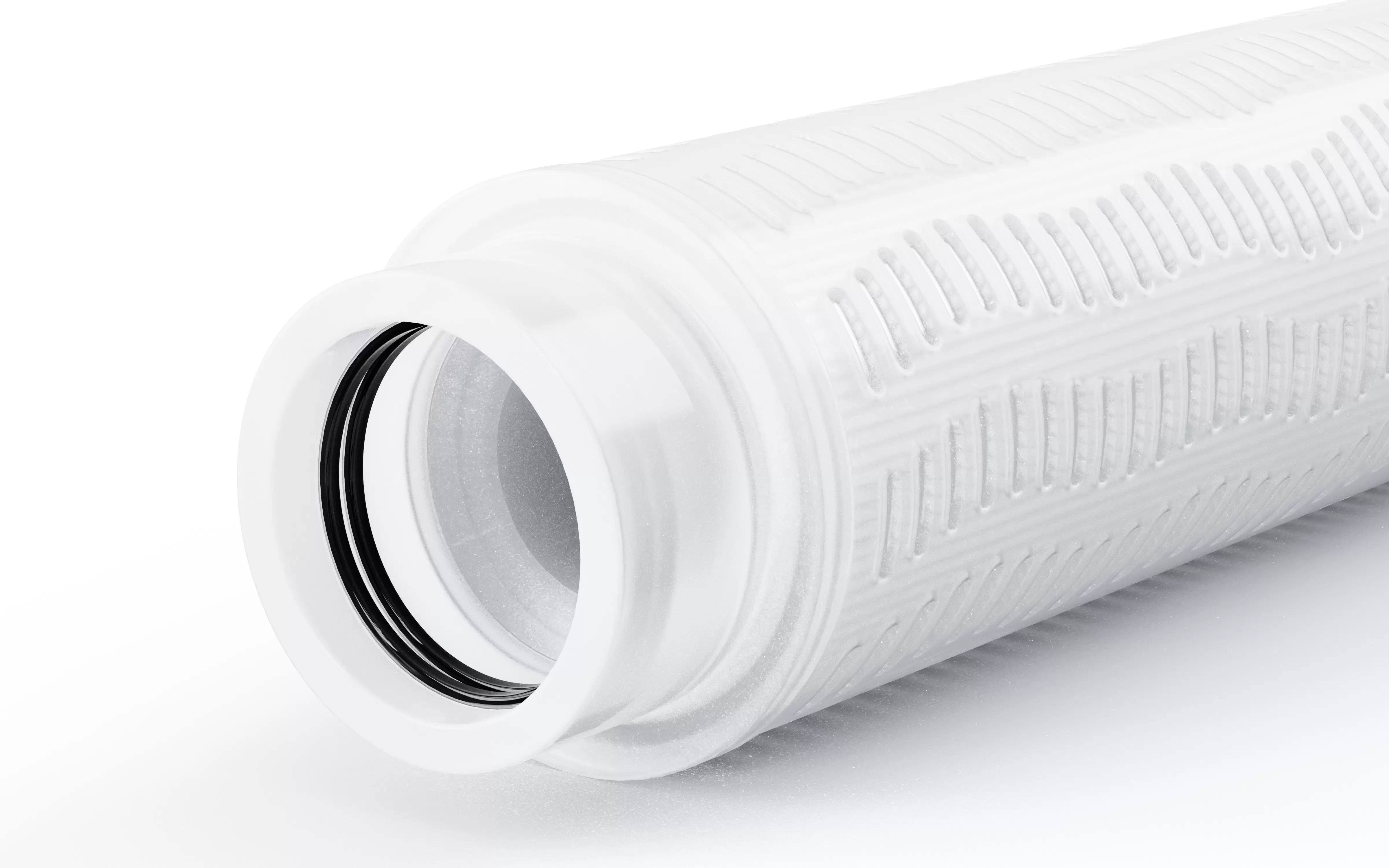

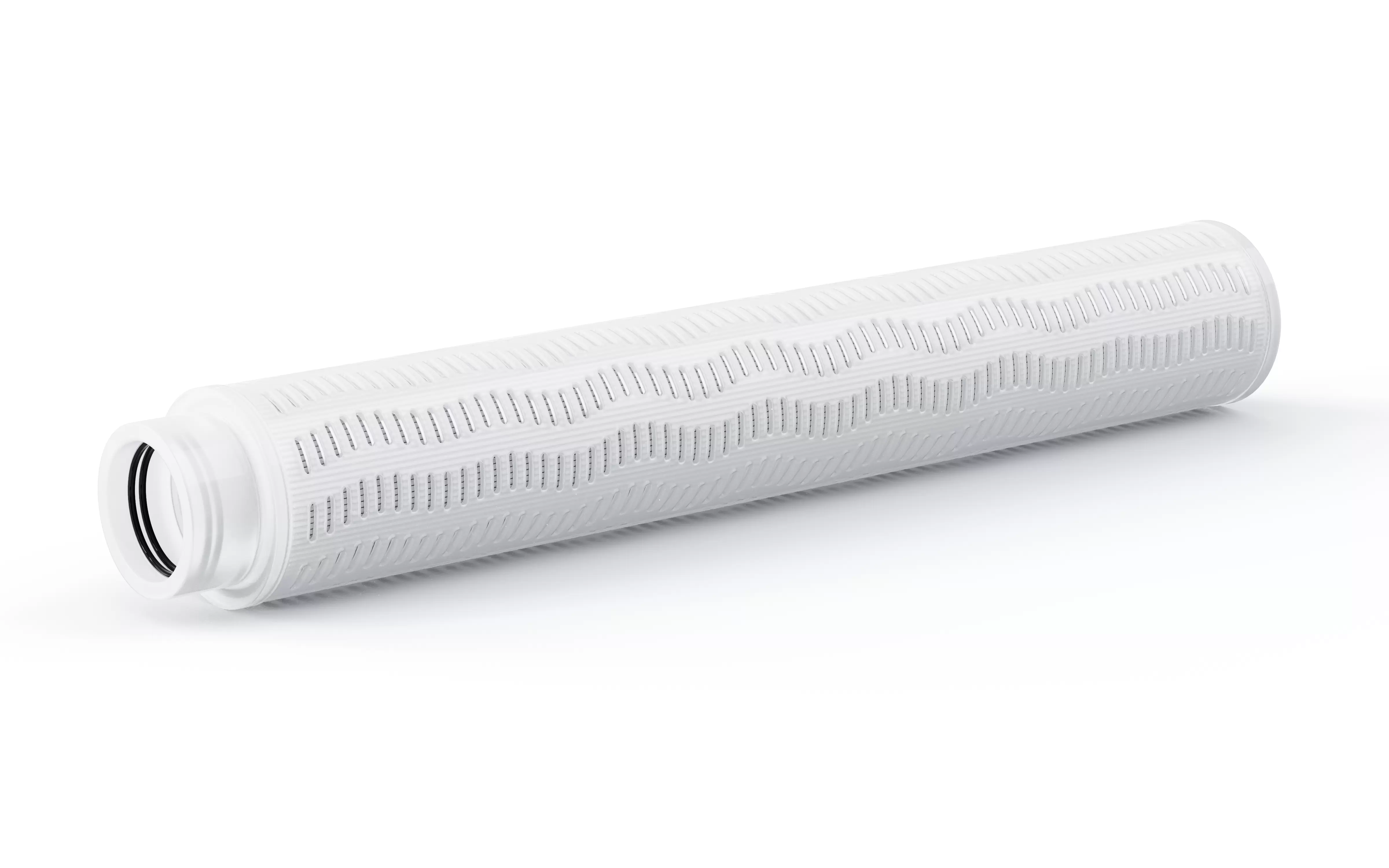

The high-flow filter cartridge features a multi-layer pleated structure and high-strength polypropylene material, offering high flow processing capacity and excellent chemical resistance. It serves as a critical component in industrial solid-liquid separation and pretreatment systems.

Application Scenarios

Highly Corrosive Wastewater Treatment
Organic Solvent Filtration
Heavy Metal Removal
Rare Earth Recycling

Technical Features

• Single cartridge flow rate up to 30–60 m³/h

• Multiple precision grades available (1μm ~ 50μm)

• Withstands pressures up to 3–5 bar, with easy installation and maintenance

• Performance parameters (recommended configuration):

• Material: PP / Polyester / PTFE

• Length options: 20/40/60 inches

• End cap connections: 1/4“ NPT, 1/2” NPT, 3/4" NPT

• Length options: 20/40/60 inches

• End cap interfaces: 226 / 222 / DOE, etc. (customizable)
